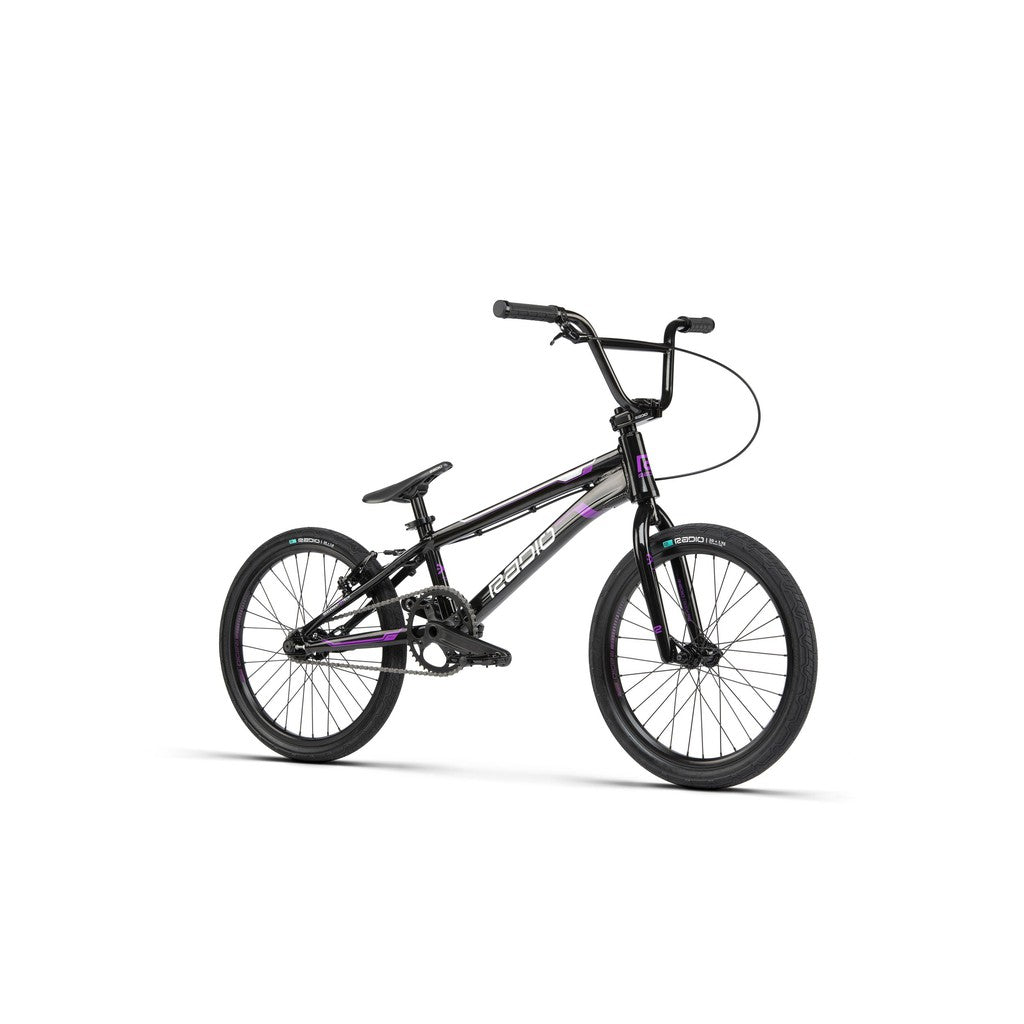

xenon kinderfahrrad Radio Xenon Pro Bike

xenon kinderfahrrad Radio Xenon Pro BikeBuilding upon their ever increasing successes, the Radio Xenon range is solidifying itself as a trusted mid level complete race bike. The Radio Xenon Pro Bike comes with an array of race winning components, including disc brake ready dropouts. The frame is manufactured from hydro formed 6061 T6 alloy, with forks fully built from chromoly, from the steerer tube, to the fork legs. Sealed bottom bracket and hubs keep maintenance down to a minimum, while

Building upon their ever increasing successes, the Radio Xenon range is solidifying itself as a trusted mid level complete race bike. The Radio Xenon Pro Bike comes with an array of race winning components, including disc brake ready dropouts. The frame is manufactured from hydro-formed 6061-T6 alloy, with forks fully built from chromoly, from the steerer tube, to the fork legs. Sealed bottom bracket and hubs keep maintenance down to a minimum, while quality Radio Raceline and Promax components are fitted across the bike. Giving you the best possible winning combination.

The Pro and Pro XL Xenon bikes are the ideal entry level Pro bikes for the growing racer, with younger racers usually skipping sizes, going from a Expert bike to a Pro, or Expert XL to a Pro XL. The Xenon range provides you with the options to make this choice possible and to ensure your racer ends up on the correct size race rig.

Key Specs:

• TT Length: 20.75"
• Wheel: 20"
• BB Height: 11.6"
• Crank Length: 175mm
• Gearing: 43x16
• Gear Ratio: 51.63"
• Tyre Size: 20x1.6"

Specifications
Frame - Hydroformed 6061 T6 alloy, forged & disc brake mount ready dropouts, with int. chain tensioners
Fork - Cr-Mo, 1-1/8″ butted steerer tube, Cr-Mo fork legs, 30mm offset
Handlebar - 4130 crmo bar, seamless
Grips - Radio, 'Xenon', diamond knurling, clamp on grip, 139mm length
Stem - Radio, 'Xenon Pro', toploader, ext. 53mm, cold forged/CNC alloy
Headset - Radio, 'Pro', int. headset, sealed, threadless, 1-1/8″ – 1.5″, including fork crown race 1.5″-1 1/8″ converter
Brake lever - Promax 'XL-373' alloy brake rear
Brake - Promax 'TX-131' alloy brake rear
Crank - Radio, 'Xenon Pro', 2pc crank, cold forged/CNC, alloy,175mm length, 24mm spindle
BB - Radio, BSA 24, external bearing cups, CNC machined, sealed
Pedals - Radio, 'Xenon slim', alloy
Chain - KMC, 'Z6', 1/2″ x 3/32″
Sprocket - Radio, 'Xenon Pro', 43T, alloy
Driver - Radio, 16T cog, 1/2″- 3/32″, sealed cassette driver
Front hub - Radio, 'Xenon', alloy CNC, fully sealed, 32T, 3/8″ Cr-Mo axle
Rear hub - Radio, 'Xenon', alloy CNC, fully sealed, 32T, disc brake cassette, 3/8″ Cr-Mo axle
Rims - Radio, 'Argon Pro', 32h, alloy, sleeved joint F & R
Seat - Radio, 'Xenon', pivotal, no padding
Seat post - Radio, 27.2mm, pivotal, alloy seatpost
Seat clamp - Radio, 'Xenon', quick-release, alloy
Tyres - Radio, 'Oxygen', front 20″x1.75″ / rear 20″x1.6″ F & R

Frame geometry
Top tube length - 20.75″
Chain stay length - 14.25″
Head tube angle - 74°
Seat tube angle - 71°
Bottom bracket height - 11.6″

Handlebar geometry
Rise - 7.5″
Width - 28″
Backsweep - 11°
Upsweep - 3.5°
